India’s Largest Manufacturer and Exporter of Magnet based high precision electronic balances.




Contech Instruments Ltd.
-
---------------------------------

Company was awarded
ISO 9001 : 2008,
ISO 14001:2004,
OHSAS 18001:2007
From
UKAS
Management Systems in
the year 2014.
---------------------------------



Contech Instruments Ltd.

is a leading manufacturer and exporter of high precision Electronic Balance that has for the past few years provided the industry with quality products like electronic balances, weighing machines
.......
MORE










INDUSTRIAL SCALES Manufacturer Supplier and Exporters


Contech offers total weighing solution for all the Industrial segments with various options.  The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor  Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc.


Highslide JS



Click On Image For ZOOM

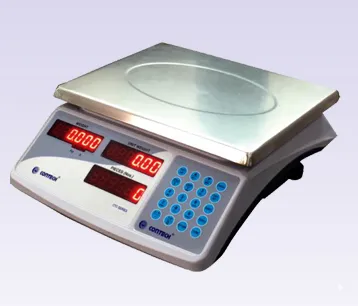

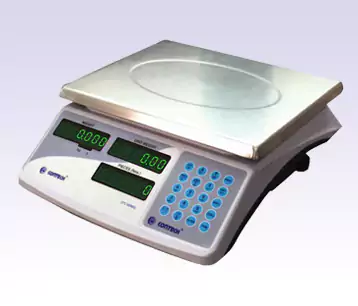

  PIECE COUNTING SCALES - AVAILABLE IN TABLETOP
  (0.5 g - 35 kg) and Platform ( 2 g - 1 ton)




3 separate display to indicate weight, unit weight and quantity.
Numeric keyboard for easy entry of unit weight/sample quantity.
Automatic count improvement mode.
Resettable set points for check counting
Comparator function with audio indication (buzzer)
Accumulation and recalling of counts with date/time.
Optional comparator with relay outputs.
Print option with date/time, count and weight.


DOWNLOAD CATALOGUE



DOWNLOAD MANUAL




Specifications:

  Models

CTC-6001

CTC-10002

CTC-15005

CTC-30K1

CTP-35K5

  Capacity

6kg

10kg

15kg

30kg

35kg

  Readability

0.1g

0.2g

0.5g

1g

5g

  Repeatability(+/-)

0.1g

0.2g

0.5g

1g

5g

  Linearity (+/-)

0.2g

0.4g

1g

2g

5g

  Pan Size 225mm x 300mm 225mm x 300mm

225mm x 300mm

225mm x 300mm

225mm x 300mm



  Models

CP-75K5

CP-100K10

CP-200K20

CP-300K20

CP-500K50

CP-1T100

  Capacity

75kg

100kg

200kg

300kg

500kg

1 Ton

  Readability

5g

10g

20g

20g

50g

100g

  Repeatability(+/-)

5g

10g

20g

20g

50g

100g

  Linearity (+/-)

10g

20g

40g

40g

100g

200g

  Pan Size 400mm x 400mm 450mm x 500mm

600mm x 600mm

600mm x 600mm

750x750mm

1000x1000 mm

Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
